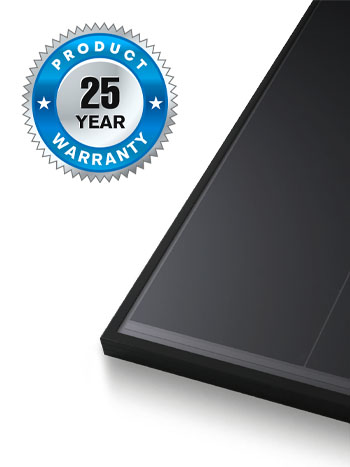

Aiko 510 Watt Panel HIGH 60 AB 60 Cell Black Backsheet black Frame

Aiko

Aiko 510 Watt Panel HIGH 60 AB 60 Cell Black Backsheet black Frame

AIK-A-MAH60-510-AB-DG-G2

£92.13 (£0.15/Wp)
Out of stock

Wattage

510 WATT

Panel Width

1134 MILLIMETER

Panel Depth

30 MILLIMETER

Panel Height

1954 MILLIMETER

All Technical Specifications

Other Features

Aiko Monocrystaline N-type ABC - Dual-Glass, Neostar 2S+ Gen 2

AIKO-A510-MAH60Db

AIKO’s All-Black 60-cell gen 2 panels are a result of cutting-edge technology and deliver a fantastic 23.0% efficiency. These sleek panels feature a blacked-out effect and bezel-less edge to provide a stylish edge to the panel’s overall design. AIKO’s 60 cell panels are perfect for residential builds looking for the highest efficiency available.

  • Up to 23.5% Efficiency 500W-520W
  • Maximum System Voltage: DC1500V
  • Panel Rating (510W) Efficiency: 23.0%
  • Cable Length: 1.2m
  • Connector: Staubli MC4 EVO2
  • Product Warranty: 25 Years
  • Performance Warranty: 30 Years

Aiko Key Features

  • Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
  • No.1 efficiency in the market
  • Cell-level partial shade optimisation (one and only in the industry)
  • High temperature restriction for fire safety
  • Micro-crack resistance
  • Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
  • Elegant no-busbar look

Note: 1200mm landscape cable included

Videos

Technical Specifications

Manufacturer Part Number AIK-A-MAH60-510-AB-DG-G2
Item Weight 27.20 KILOGRAM
Wattage 510 WATT
MCS Reference Number MCS PV0330/327
Panel Width 1134 MILLIMETER
Panel Depth 30 MILLIMETER
Panel Height 1954 MILLIMETER
Maximum Power Current Imp 13.39 AMPERE
Maximum Power Voltage Vmp 38.10 VOLT
Temperature Coefficient Voc -0.220
Isc 0.050
Temperature Coefficient Pmax -0.260
Panel Frame Thickness 30 MILLIMETER
Short Side Allowed No
Panel Module Cell Type ABC Monocrystalline
Commodity Code 8541430000
Warranty Years 25
Number Of Pieces 1
