Grade B

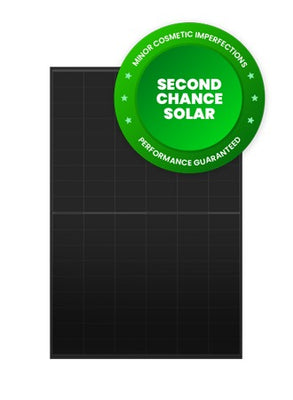

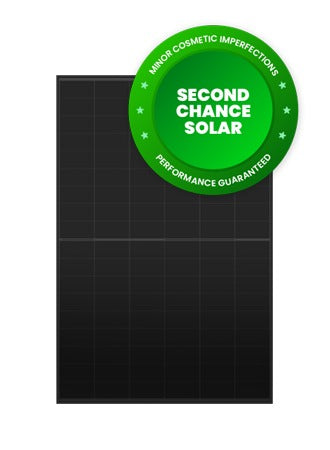

Aiko 510 Watt Panel HIGH 60 AB 60 Cell Black Backsheet black Frame
AIK-A-MAH60-510-AB-DG-G2-DMG

Grade B
Aiko 510 Watt Panel HIGH 60 AB 60 Cell Black Backsheet black Frame
Wattage
510 WATT
Panel Width
1134 MILLIMETER
Panel Depth
30 MILLIMETER
Panel Height
1954 MILLIMETER
Other Features
Technical Specifications
| Manufacturer Part Number | AIK-A-MAH60-510-AB-DG-G2 |
| Item Weight | 27.20 KILOGRAM |
| Wattage | 510 WATT |
| MCS Reference Number | MCS PV0330/327 |
| Panel Width | 1134 MILLIMETER |
| Panel Depth | 30 MILLIMETER |
| Panel Height | 1954 MILLIMETER |
| Maximum Power Current Imp | 13.39 AMPERE |
| Maximum Power Voltage Vmp | 38.10 VOLT |
| Temperature Coefficient Voc | -0.220 |
| Isc | 0.050 |
| Temperature Coefficient Pmax | -0.260 |
| Panel Frame Thickness | 30 MILLIMETER |
| Short Side Allowed | No |
| Panel Module Cell Type | ABC Monocrystalline |
| Commodity Code | 8541430000 |
| Warranty Years | 25 |
| Number Of Pieces | 1 |
