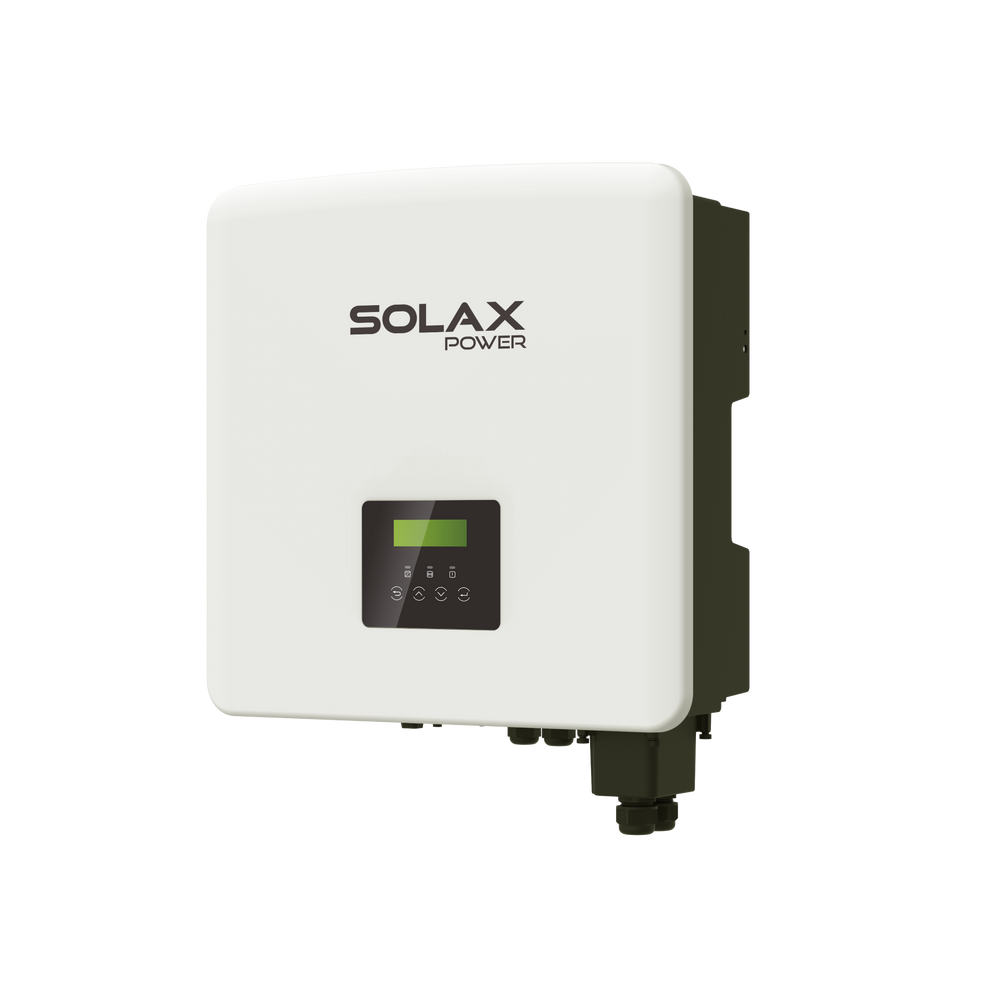

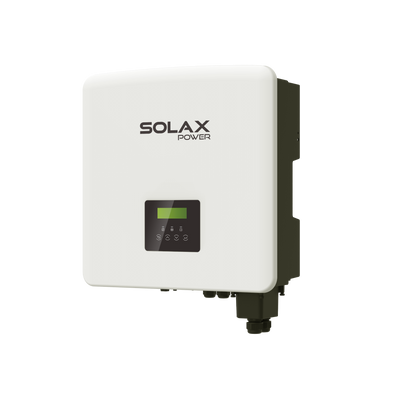

Three Phase Retro Fit 10.0kW AC Coupled inverter
Product Features
- Compatible with High voltage batteries
- IP65 protection rating
- Natural cooling and low maintenance
- Max Efficiency up to 96%
This is the W version of the inverter with built in EPS function. It required external back up box to fully utilise the EPS function.
It can be used with between 2 and 4 Solax Triple Power Batteries (one size batteries per system only) .
This inverter can be paralleled up to 5 units per site.
Looking to expand your system capacity? See Solax EPS Parallel Box options
- X3-PBOX-60kW-G2 – Connect up 6 AC Coupled inverters with a maximum of 60kW
- X3-PBOX-150kW-G2 – Connect up 10 AC Coupled inverters with a maximum of 150kW
Please note: When installing in parallel all inverters should have the same Kilowatt rating
