All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.
Grade B

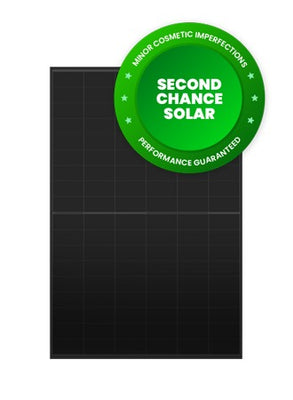

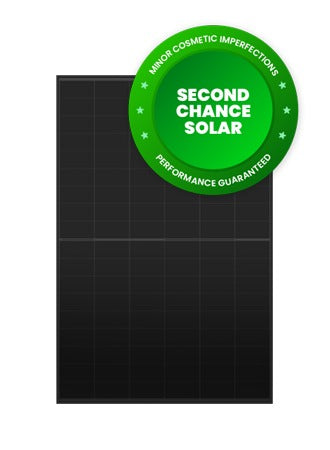

515W Neostar 2S N-Type Mono-Glass ABC 60 Cell All Black MC4-EVO2 Gen 2
AIK-A-MAH60-515-AB-G2-DMG

Grade B
515W Neostar 2S N-Type Mono-Glass ABC 60 Cell All Black MC4-EVO2 Gen 2
Wattage Rating
515 w
Panel Height
1954 mm
Panel Width
1134 mm
Panel Depth
30 mm
Other Features
Technical Specifications
| Segen Part No | AIK-A-MAH60-515-AB-G2-DMG |
| Wattage Rating | 515 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.49 A |
| Maximum Power Voltage Vmp | 38.20 v |
| Module Cell Type | ABC Monocrystalline |
| Number Of Cells | 60 |
| Open Circuit Voltage Voc | 45.32 v |
| Panel Depth | 30 mm |
| Panel Height | 1954 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 14.23 A |
| Isc | 0.050 |
| Temperature Coefficient Pmax | -0.260 |
| Temperature Coefficient Voc | -0.220 |
| Manufacturer Part Number | AIKO-A515-MAH60Mb |
| Panel Performance Warranty | 30 Year Linear |
| Warranty Years | 25 |
