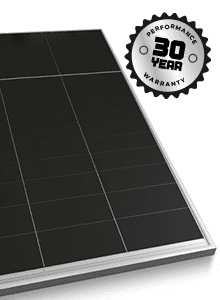

645W Stellar 1N+ N-Type ABC 72 Cell Silver Frame Dual Glass Long Cable 01C Connector

AIKO

645W Stellar 1N+ N-Type ABC 72 Cell Silver Frame Dual Glass Long Cable 01C Connector

AIK-G-MCH72-645-SF-DG-SC-01C-EXT

£84.00 exVAT (13.0p/Wp)
Sign in or create an account

Wattage Rating

645 w

Panel Height

2382 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – Aiko Stellar 1N+ EN

General Product Documents – AIKO V19 EN

General Product Documents – AIKO PV Modules

MCS Certificates – AIKO MCS PV0330 Issued June 2023

MCS Certificates – Aiko Solar Mw and Mb

Other Features

Aiko Monocrystaline N-type ABC - Stellar 1N+

With 2.3m Extension Cable

AIKO-G645-MCH72Dw

This panel is supplied with a AIKO-01C connector.

Technical Specifications

Segen Part No AIK-G-MCH72-645-SF-DG-SC-01C-EXT
Wattage Rating 645 w
Half Cell No
Maximum Power Current Imp 14.27 A
Maximum Power Voltage Vmp 45.20 v
Number Of Cells 72
Open Circuit Voltage Voc 53.90 v
Panel Depth 30 mm
Panel Height 2382 mm
Panel Width 1134 mm
Short Circuit Current Isc 15.00 A
Isc 0.050
Temperature Coefficient Pmax -0.260
Temperature Coefficient Voc -0.220
Panel Performance Warranty 30 Year Linear
Warranty Years 15
