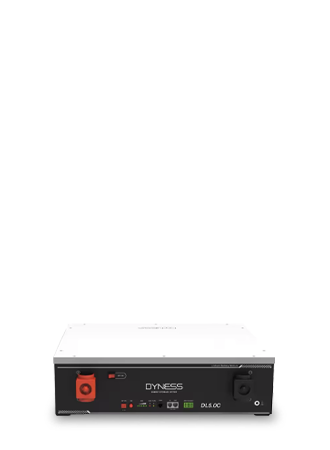

Dyness - DL5.0C

Dyness DL5.0C adopts economic design, and is tailor-made for residential and small commercial application. This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kWh to 256kWh (max. 50 modules in parallel), providing various energy options to meet different requirements.

• APP Monitoring - Real-time monitoring & Remote upgrade available
• Module Design - Flexible expansion
• Support Battery Charge & Discharge under low ambient temperature
• Various Mounting Methods - Wall-mounted, floor-standing and stacked
• High Safety LFP - Cell level monitoring and balancing
• Wide Compatibility - Matching with leading inverters

Compatible with Solis, Single phase, Low voltage inverters

Box Content of 1 x DL5.0C - 51.2V/100Ah

• 1 x Parallel cable - positive Red /4AWG/L250mm
• 1 x Parallel cable - negative Black /4AWG/L250mm
• 1 x Communication parallel cable - Black /L500mm/Double RJ45 plug
• 1 x Communication cable-to inverter - Black /L2000mm /Double RJ45 plug
• 1 x Ground wire - L500mm,4mm²
• 8 x Screw Screws M6
• 8 x Expansion screw Expansion screw
• 1 x User Manual User manual
