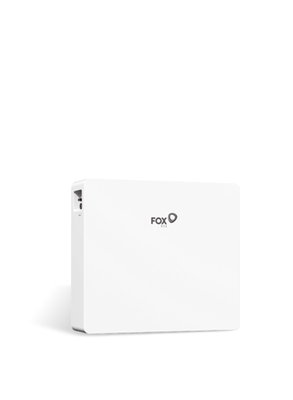

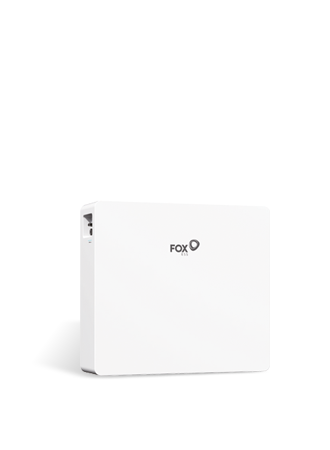

Fox ESS EP12 11.52kWh 384V Battery with Heating Element

Fox ESS

Fox ESS EP12 11.52kWh 384V Battery with Heating Element

FE-HV-EP12-H

Pack size

Single £2,175.00/pack £2,175.00 each
£2,175.00 exVAT
Sign in or create an account

Battery Nominal Energy Wh

11520 Wh

Battery Nominal Voltage

384.00 v

Maximum Discharge Power

11520 w

Warranty Years

10

All Technical Specifications

Bundles that include this product

3 bundles

Documentation

General Product Documents – FOX ESS EP12-H EN

General Product Documents – Fox ESS Battery V4.5

General Product Documents – Fox Factsheet EP Series

Other Features

Fox EP12-H

The EP12-H is a high-performance, scalable battery storage system, allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in parallel allowing for a maximum storage capacity of 46.08kwh.

  • Battery heating and fire suppression
  • Scalable to 46.08kWh
  • 90% Depth of Discharge
  • Floor or Wall Mounting
  • Compact & Easy Installation
  • IP65 Protection Level
  • High Voltage and High Efficiency
  • 10-year warranty upon registration
  • Smart Battery Warming


      Please note that the EP-11/EP-12 are compatible together for storage expansion.



    Technical Specifications

    Segen Part No FE-HV-EP12-H
    Battery Nominal Energy Wh 11520 Wh
    Battery Nominal Voltage 384.00 v
    Battery Type Lithium Ion
    Depth Of Discharge 90.00 PERCENT
    Max Charge Power Battery 11520 w
    Max Charge Voltage 438.0 v
    Maximum Discharge Power 11520 w
    Recommended Discharge Power 5760 w
    Manufacturer Part Number EP12-H Battery (10 years warranty)
    Warranty Years 10
    Item Weight 98 Kg
