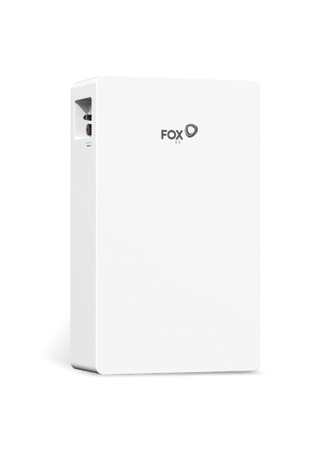

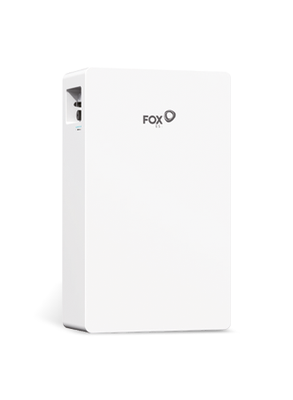

Fox ESS EP6 5.76kWh Battery with Heating Element

Fox ESS

Fox ESS EP6 5.76kWh Battery with Heating Element

FE-HV-EP6-H

Pack size

Single £1,162.00/pack £1,162.00 each
£1,162.00 exVAT
Sign in or create an account

Battery Nominal Energy Wh

5760 Wh

Battery Nominal Voltage

192.00 v

Maximum Discharge Power

5760 w

Warranty Years

10

All Technical Specifications

Bundles that include this product

3 bundles

Documentation

General Product Documents – FOX ESS EP6-H EN

General Product Documents – Fox ESS Battery V4.5

General Product Documents – Fox Factsheet EP Series

Other Features

Fox EP6-H

The EP6-H is a high-performance, scalable battery storage system, allows for maximum flexibility, making it suitable for a broad range of storage applications. With a FE-JUNBOX-HV, additional batteries can be installed in parallel allowing for a maximum storage capacity of 23.04kwh.

  • Battery heating and fire suppression
  • Scalable to 23.04 kWh
  • 90% Depth of Discharge
  • Floor or Wall Mounting
  • Compact & Easy Installation
  • IP65 Protection Level
  • High Voltage and High Efficiency
  • 10-year warranty upon registration


  Please note that the EP-5/EP-6 are compatible together for storage expansion.



Technical Specifications

Segen Part No FE-HV-EP6-H
Battery Nominal Energy Wh 5760 Wh
Battery Nominal Voltage 192.00 v
Battery Type Lithium Ion
Depth Of Discharge 90.00 PERCENT
Max Charge Power Battery 5760 w
Max Charge Voltage 219.0 v
Maximum Discharge Power 5760 w
Recommended Discharge Power 2880 w
Manufacturer Part Number EP6-H Battery (10 years warranty)
Warranty Years 10
Item Weight 51 Kg
