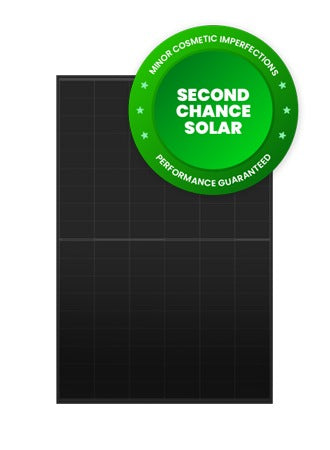

GRADE B - 365W Super High Power Mono PERC HiKU All Black with MC4-EVO2

Grade B

GRADE B - 365W Super High Power Mono PERC HiKU All Black with MC4-EVO2

CS3L-365MS-MC4-AB-DMG

£24.00 exVAT (6.6p/Wp)

Wattage Rating

365 w

Panel Height

1765 mm

Panel Width

1048 mm

Panel Depth

35 mm

All Technical Specifications

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No CS3L-365MS-MC4-AB-DMG
Wattage Rating 365 w
Half Cell No
Maximum Power Current Imp 10.78 A
Maximum Power Voltage Vmp 33.90 v
Module Cell Type Monocrystalline
Number Of Cells 120
Open Circuit Voltage Voc 40.60 v
Panel Depth 35 mm
Panel Height 1765 mm
Panel Width 1048 mm
Short Circuit Current Isc 11.47 A
Isc 0.050
Temperature Coefficient Pmax -0.340
Temperature Coefficient Voc -0.260
Manufacturer Part Number CS3L-365MS-MC4-AB
Panel Performance Warranty 25 Year Linear
Warranty Years 25
