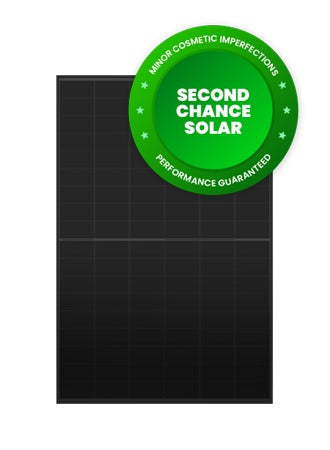

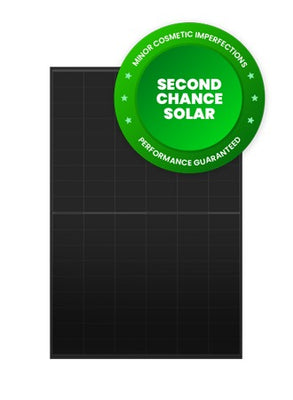

GRADE B - 385W Mono Q Peak Duo BLK ML-G9 All Black HQC4

Grade B

GRADE B - 385W Mono Q Peak Duo BLK ML-G9 All Black HQC4

Q.PEAK-BLK-G9-DUO-385-HQC4-DMG

£25.30 exVAT (6.6p/Wp)

Wattage Rating

385 w

Panel Height

1840 mm

Panel Width

1030 mm

Panel Depth

32 mm

All Technical Specifications

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No Q.PEAK-BLK-G9-DUO-385-HQC4-DMG
Wattage Rating 385 w
Half Cell No
Maximum Power Current Imp 10.10 A
Maximum Power Voltage Vmp 38.13 v
Module Cell Type Monocrystalline
Number Of Cells 132
Open Circuit Voltage Voc 45.08 v
Panel Depth 32 mm
Panel Height 1840 mm
Panel Width 1030 mm
Short Circuit Current Isc 10.53 A
Isc 0.040
Temperature Coefficient Pmax -0.350
Temperature Coefficient Voc -0.270
Manufacturer Part Number Q.PEAK-BLK-G9-DUO-385-HQC4
Panel Performance Warranty 25 Year Linear
Warranty Years 12
