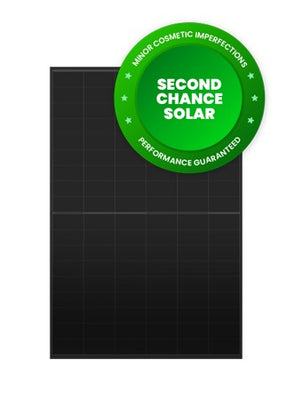

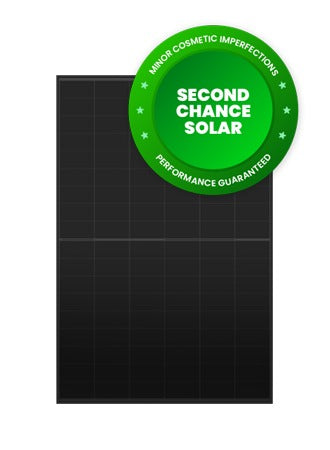

GRADE B - 430W TOPHiKu6 All black with MC4

Grade B

GRADE B - 430W TOPHiKu6 All black with MC4

CS6R-430MS-T-MC4-AB-DMG

£28.20 exVAT (6.6p/Wp)

Wattage Rating

430 w

Panel Height

1722 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No CS6R-430MS-T-MC4-AB-DMG
Wattage Rating 430 w
Half Cell No
Maximum Power Current Imp 13.44 A
Maximum Power Voltage Vmp 32.00 v
Module Cell Type Monocrystalline
Number Of Cells 108
Open Circuit Voltage Voc 39.00 v
Panel Depth 30 mm
Panel Height 1722 mm
Panel Width 1134 mm
Short Circuit Current Isc 13.86 A
Isc 0.050
Temperature Coefficient Pmax -0.290
Temperature Coefficient Voc -0.250
Manufacturer Part Number CS6R-430MS-T-MC4
Panel Performance Warranty 30 Year Linear
Warranty Years 25
