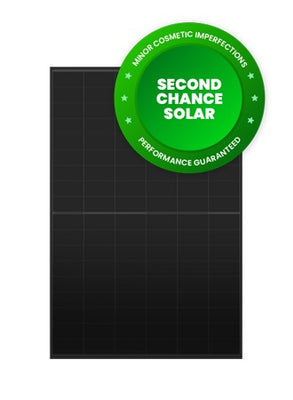

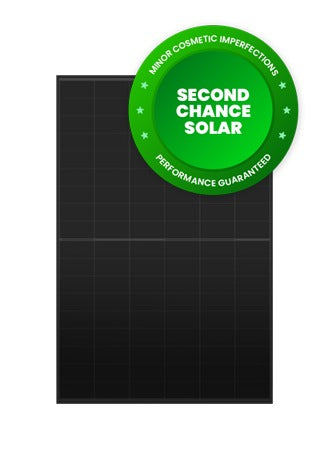

GRADE B - 440W N-type Double Glass Bifacial Mono LB with MC4 connectors (Black Frame)

Grade B

GRADE B - 440W N-type Double Glass Bifacial Mono LB with MC4 connectors (Black Frame)

JAM54D-40-440-LB-MC4-DMG

£28.90 exVAT (6.6p/Wp)

Wattage Rating

440 w

Panel Height

1762 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

MCS Certificates – JA MCS 2025

Test Certificates – REACHComplianceStatement_EN___SGS_RC_CN2400018_JAM66D46_xxxLB_

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No JAM54D-40-440-LB-MC4-DMG
Wattage Rating 440 w
Half Cell No
Maximum Power Current Imp 13.55 A
Maximum Power Voltage Vmp 32.47 v
Module Cell Type Monocrystaline
Number Of Cells 108
Open Circuit Voltage Voc 38.90 v
Panel Depth 30 mm
Panel Height 1762 mm
Panel Width 1134 mm
Short Circuit Current Isc 14.31 A
Temperature Coefficient Pmax -0.300
Temperature Coefficient Voc -0.260
Manufacturer Part Number JAM54D40-440/LB
Panel Performance Warranty 30 Year Linear
Warranty Years 25
