Grade B

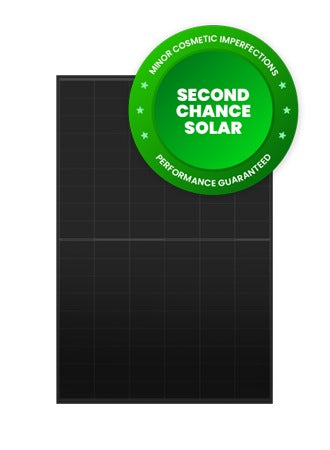

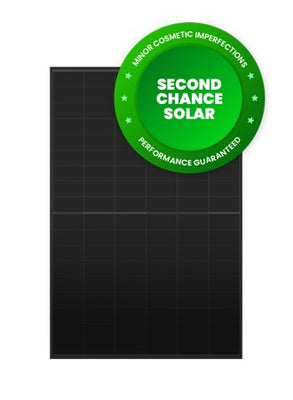

GRADE B - 440W N-type Double Glass Bifacial Traceable with MC4 connectors (Black Frame)
JAM54D-40-440-LB-TS-MC4-DMG

Grade B
GRADE B - 440W N-type Double Glass Bifacial Traceable with MC4 connectors (Black Frame)
Wattage Rating
440 w
Panel Height
1762 mm
Panel Width
1134 mm
Panel Depth
30 mm
Documentation
Other Features
Technical Specifications
| Segen Part No | JAM54D-40-440-LB-TS-MC4-DMG |
| Wattage Rating | 440 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.55 A |
| Maximum Power Voltage Vmp | 32.47 v |
| Module Cell Type | Monocrystaline |
| Number Of Cells | 108 |
| Open Circuit Voltage Voc | 38.90 v |
| Panel Depth | 30 mm |
| Panel Height | 1762 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 14.31 A |
| Temperature Coefficient Pmax | -0.300 |
| Temperature Coefficient Voc | -0.260 |
| Manufacturer Part Number | JAM54D-40-440-LB-TS-MC4 |
| Panel Performance Warranty | 30 Year Linear |
| Warranty Years | 25 |
