Grade B

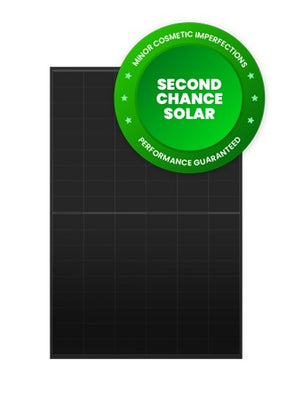

GRADE B - 450W N-type DG Bifacial LB Traceable LC with MC4 connectors (Black Frame)
JAM54D-40-450-LB-TSLC-MC4-DMG

Grade B
GRADE B - 450W N-type DG Bifacial LB Traceable LC with MC4 connectors (Black Frame)
Wattage Rating
450 w
Panel Height
1762 mm
Panel Width
1134 mm
Panel Depth
30 mm
Documentation
Other Features
Technical Specifications
| Segen Part No | JAM54D-40-450-LB-TSLC-MC4-DMG |
| Wattage Rating | 450 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.71 A |
| Maximum Power Voltage Vmp | 32.82 v |
| Module Cell Type | Double Glass |
| Number Of Cells | 108 |
| Open Circuit Voltage Voc | 39.30 v |
| Panel Depth | 30 mm |
| Panel Height | 1762 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 14.48 A |
| Isc | 0.046 |
| Temperature Coefficient Pmax | -0.300 |
| Temperature Coefficient Voc | -0.260 |
| Manufacturer Part Number | JAM54D-40-450-LB-TSLC-MC4 |
| Panel Performance Warranty | 30 Year Linear |
| Warranty Years | 25 |
