Grade B

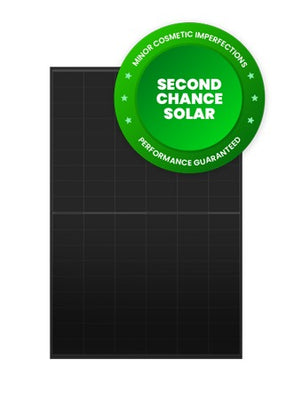

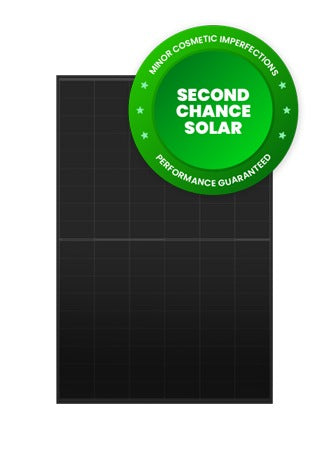

GRADE B - 455W Mono TOPHiKU6 Black frame
CS6.2-48TD-455-BF-DMG

Grade B
GRADE B - 455W Mono TOPHiKU6 Black frame
Wattage Rating
455 w
Panel Height
1762 mm
Panel Width
1134 mm
Panel Depth
30 mm
Other Features
Technical Specifications
| Segen Part No | CS6.2-48TD-455-BF-DMG |
| Wattage Rating | 455 w |
| Half Cell | No |
| Maximum Power Current Imp | 10.12 A |
| Maximum Power Voltage Vmp | 45.00 v |
| Module Cell Type | Monocrystaline |
| Number Of Cells | 144 |
| Open Circuit Voltage Voc | 53.10 v |
| Panel Depth | 30 mm |
| Panel Height | 1762 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 10.75 A |
| Isc | 0.045 |
| Temperature Coefficient Pmax | -0.290 |
| Temperature Coefficient Voc | -0.250 |
| Manufacturer Part Number | CS6.2-48TD-455-BF |
| Panel Performance Warranty | 30 Year Linear |
| Warranty Years | 25 |
