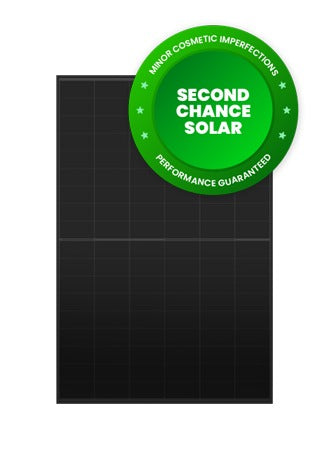

GRADE B - 505W Mono PERC Half-Cell MBB Silver Frame MC4 Connectors

Grade B

GRADE B - 505W Mono PERC Half-Cell MBB Silver Frame MC4 Connectors

JAM66S-30-505-MR-MC4-DMG

£33.20 exVAT (6.6p/Wp)

Wattage Rating

505 w

Panel Height

2093 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

MCS Certificates – JA MCS 2025

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No JAM66S-30-505-MR-MC4-DMG
Wattage Rating 505 w
Half Cell No
Maximum Power Current Imp 13.11 A
Maximum Power Voltage Vmp 38.53 v
Module Cell Type Monocrystalline
Number Of Cells 132
Open Circuit Voltage Voc 45.72 v
Panel Depth 30 mm
Panel Height 2093 mm
Panel Width 1134 mm
Short Circuit Current Isc 14.00 A
Isc 0.045
Temperature Coefficient Pmax -0.350
Temperature Coefficient Voc -0.275
Manufacturer Part Number JAM66S-30-505-MR-MC4
Panel Performance Warranty 25 Year Linear
Warranty Years 12
