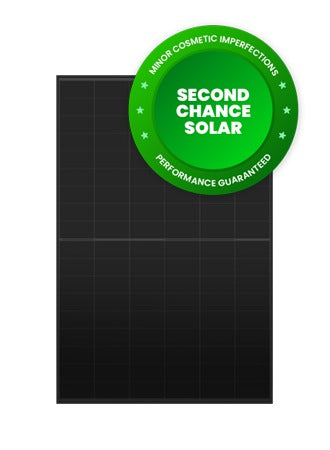

GRADE B - Clearline 335W Mono All Black G1 Version 3

Grade B

GRADE B - Clearline 335W Mono All Black G1 Version 3

VIR-PV16-335-G1-V3-DMG

£22.00 exVAT (6.6p/Wp)

Wattage Rating

335 w

Panel Height

1686 mm

Panel Width

1000 mm

Panel Depth

69 mm

All Technical Specifications

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No VIR-PV16-335-G1-V3-DMG
Wattage Rating 335 w
Half Cell No
Maximum Power Current Imp 9.66 A
Maximum Power Voltage Vmp 34.70 v
Module Cell Type Monocrystalline
Number Of Cells 120
Open Circuit Voltage Voc 42.00 v
Panel Depth 69 mm
Panel Height 1686 mm
Panel Width 1000 mm
Short Circuit Current Isc 10.30 A
Isc 0.050
Temperature Coefficient Pmax -0.380
Temperature Coefficient Voc -0.300
Manufacturer Part Number PV16-335-G1-V3
Panel Performance Warranty 25 Year Linear
Warranty Years 10
