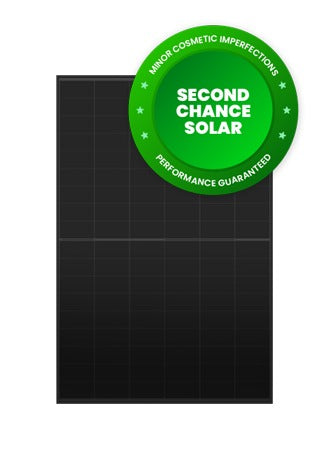

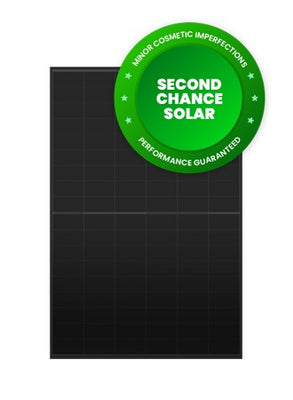

GRADE B - Neostar 2S 510W N-Type ABC, 60 Cell, All Black, Gen 2

Grade B

GRADE B - Neostar 2S 510W N-Type ABC, 60 Cell, All Black, Gen 2

AIK-A-MAH60-510-AB-G2-DMG

£33.50 exVAT (6.6p/Wp)

Wattage Rating

510 w

Panel Height

1954 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Other Features

All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. Segen makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the Segen RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Technical Specifications

Segen Part No AIK-A-MAH60-510-AB-G2-DMG
Wattage Rating 510 w
Half Cell No
Maximum Power Current Imp 13.39 A
Maximum Power Voltage Vmp 38.10 v
Module Cell Type ABC Monocrystalline
Number Of Cells 60
Open Circuit Voltage Voc 45.22 v
Panel Depth 30 mm
Panel Height 1954 mm
Panel Width 1134 mm
Short Circuit Current Isc 14.17 A
Isc 0.050
Temperature Coefficient Pmax -0.260
Temperature Coefficient Voc -0.220
Manufacturer Part Number AIK-A-MAH60-510-AB-G2
Panel Performance Warranty 25 Year Linear
Warranty Years 25
