Grade B

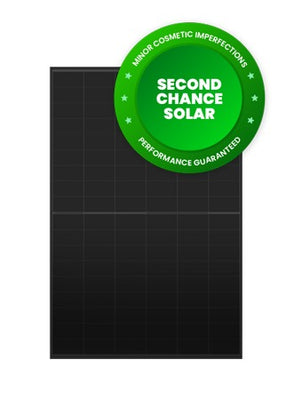

GRADE B - Neostar 3S 470W N-Type ABC, 54 Cell, Mono Glass All Black, Gen 3
AIK-A-MCE54-470-AB-G3-DMG

Grade B
GRADE B - Neostar 3S 470W N-Type ABC, 54 Cell, Mono Glass All Black, Gen 3
Wattage Rating
470 w
Panel Height
1762 mm
Panel Width
1134 mm
Panel Depth
30 mm
Other Features
Technical Specifications
| Segen Part No | AIK-A-MCE54-470-AB-G3-DMG |
| Wattage Rating | 470 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.71 A |
| Maximum Power Voltage Vmp | 34.30 v |
| Module Cell Type | ABC Monocrystalline |
| Number Of Cells | 54 |
| Open Circuit Voltage Voc | 40.70 v |
| Panel Depth | 30 mm |
| Panel Height | 1762 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 14.72 A |
| Isc | 0.050 |
| Temperature Coefficient Pmax | -0.260 |
| Temperature Coefficient Voc | -0.220 |
| Manufacturer Part Number | AIK-A-MCE54-470-AB-G3 |
| Panel Performance Warranty | 25 Year Linear |
| Warranty Years | 25 |
