Grade B

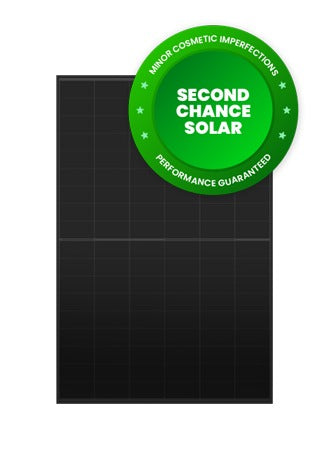

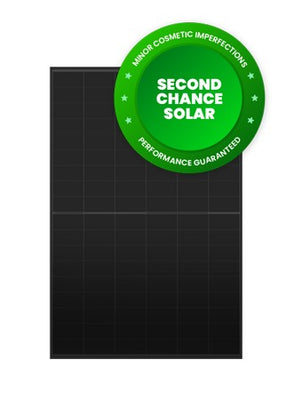

GRADE B - Neostar 445W N-Type ABC, 54 Cell, All Black
AIK-A-MAH54-445-AB-DMG

Grade B
GRADE B - Neostar 445W N-Type ABC, 54 Cell, All Black
Wattage Rating
445 w
Panel Height
1722 mm
Panel Width
1134 mm
Panel Depth
30 mm
Other Features
Technical Specifications
| Segen Part No | AIK-A-MAH54-445-AB-DMG |
| Wattage Rating | 445 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.25 A |
| Maximum Power Voltage Vmp | 33.60 v |
| Number Of Cells | 60 |
| Open Circuit Voltage Voc | 40.60 v |
| Panel Depth | 30 mm |
| Panel Height | 1722 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 13.86 A |
| Temperature Coefficient Pmax | -0.290 |
| Temperature Coefficient Voc | -0.240 |
| Manufacturer Part Number | AIK-A-MAH54-445-AB |
| Panel Performance Warranty | 25 Year Linear |
| Warranty Years | 15 |
