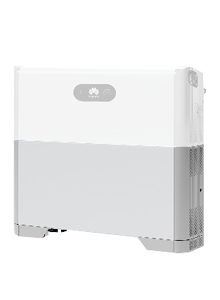

Huawei LUNA 5KWh battery module only

Huawei

Huawei LUNA 5KWh battery module only

SUN2000-LUNA-5KW-EO

£2,042.00 exVAT

Battery Nominal Energy Wh

5000 Wh

Battery Nominal Voltage

600.00 v

Maximum Discharge Power

2500 w

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Update Fusion App - DE

General Product Documents – Huawei 3-10KTL-M1

General Product Documents – Huawei Luna

General Product Documents – MSDS

General Product Documents – Attestation of Conf

Other Features

Smart String Energy by Luna

%A0This is the battery 5KWh module only%A0 and would need to add the power module to it%A0

Product Features

  • Flexible due to 5KWh that can be easy scaled from 5KWh to 30KWh
  • 100% DOD pack level energy optimization
  • Easy to install due to%A050Kg battery module
  • Lithium Iron Phosphate cells resulting is safe and reliable battery
  • Auto Detected by battery
  • Compatible with single and 3 Phase inverters
  • Battery fault on module auto isolates to keep system safe
  • Nominal voltage of battery is 600VDC
  • max output per module is 2500W
  • 10 year warranty
  • RS485 BMS communication%A0
  • IP66

Technical Specifications

Segen Part No SUN2000-LUNA-5KW-EO
Battery Nominal Energy Wh 5000 Wh
Battery Nominal Voltage 600.00 v
Battery Type Lithium Ion
Depth Of Discharge 100.00 PERCENT
Max Charge Power Battery 2500 w
Max Charge Voltage 980.0 v
Maximum Discharge Power 2500 w
Recommended Discharge Power 2500 w
Manufacturer Part Number 01074643
Warranty Years 10
Item Weight 53 Kg
