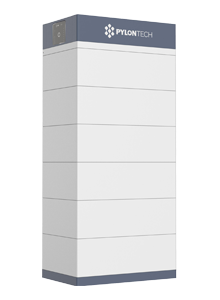

Pylon Force-H3 High Voltage System stack of 6 incl. BMU (30.7 kWh)

Pylontech

Pylon Force-H3 High Voltage System stack of 6 incl. BMU (30.7 kWh)

PYL-F-H3-BATT-BMU-30.7

£5,443.55 exVAT
Sign in or create an account

Battery Nominal Energy Wh

30720 Wh

Battery Nominal Voltage

614.00 v

Maximum Discharge Power

30720 w

Warranty Years

5

All Technical Specifications

Documentation

General Product Documents – Pylontech Force H3 - EN

General Product Documents – Pylontech Force H3

General Product Documents – Pylontech Force H3 - DE

General Product Documents – Pylontech Force Series H1/H2/H3 EN

Other Features

Not suitable for Solis 3ph hybrid inverters smaller than 12 kW (5-10k range), as the battery system voltage is over 600 V.

Technical Specifications

Segen Part No PYL-F-H3-BATT-BMU-30.7
Battery Nominal Energy Wh 30720 Wh
Battery Nominal Voltage 614.00 v
Battery Type Lithium Ion
Depth Of Discharge 95.00 PERCENT
Max Charge Power Battery 30720 w
Max Charge Voltage 691.2 v
Maximum Discharge Power 30720 w
Recommended Discharge Power 30720 w
Warranty Years 5
Item Weight 272.20 Kg
