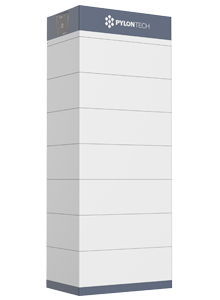

Pylon Force-H3 High Voltage System stack of 7 incl. BMU (35.8 kWh)

Pylontech

Pylon Force-H3 High Voltage System stack of 7 incl. BMU (35.8 kWh)

PYL-F-H3-BATT-BMU-35.8

£6,297.55 exVAT
Sign in or create an account

Battery Nominal Energy Wh

35840 Wh

Battery Nominal Voltage

716.00 v

Maximum Discharge Power

35840 w

Warranty Years

5

All Technical Specifications

Documentation

General Product Documents – Pylontech Force H3 - EN

General Product Documents – Pylontech Force H3

General Product Documents – Pylontech Force H3 - DE

General Product Documents – Pylontech Force Series H1/H2/H3 EN

Other Features

Not suitable for Solis 3ph hybrid inverters smaller than 12 kW, as the battery system voltage is over 600 V.

Technical Specifications

Segen Part No PYL-F-H3-BATT-BMU-35.8
Battery Nominal Energy Wh 35840 Wh
Battery Nominal Voltage 716.00 v
Battery Type Lithium Ion
Depth Of Discharge 95.00 PERCENT
Max Charge Power Battery 35840 w
Max Charge Voltage 806.4 v
Maximum Discharge Power 35840 w
Recommended Discharge Power 35840 w
Warranty Years 5
Item Weight 314.20 Kg
