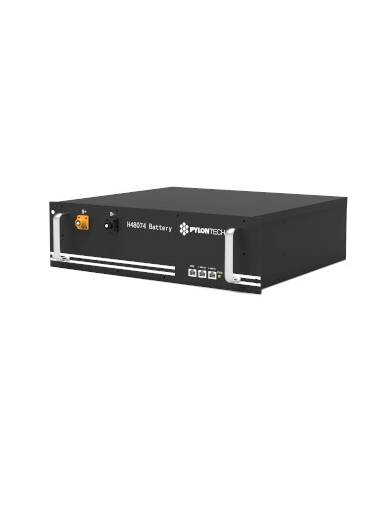

Pylon Powercube H2 High Voltage System 24.86kWh

Pylontech

Pylon Powercube H2 High Voltage System 24.86kWh

PYL-PCH2-24.86

£3,068.00 exVAT
Sign in or create an account

Battery Nominal Energy Wh

24864 Wh

Battery Nominal Voltage

336.00 v

Maximum Discharge Power

24864 w

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Pylon Powercube

Other Features

Powercube series products with its modular design concept, enables the highest flexibility both for rack mounted and container based constructions, giving the flexibilities for customer to deploy the system. Configurable from units of 5 - 12 modules per system, the system can supply 240 - 576V for high Voltage applications.

Key features:

  • -Modular and Scalable
  •         5 – 12 modules per rack and up to 6 racks in parallel
  • -Flexible BMS voltage range
  •         From 240VDC to 576VDC
  • -LiFePO4 technology
  •         For safety and long cycle life
  • -High System Safety
  •         BMS has charge, current and temperature protection
  • -Flexible configuration options
  •         Rack mounted or container-based systems

Each Battery module comes with 1 x Communication Cable and 1 x Orange Power Cable

A BMS unit and external cable kit is required for each individual stack of batteries.

For installations with two BMS units and more an MBMS is required.

Technical Specifications

Segen Part No PYL-PCH2-24.86
Battery Nominal Energy Wh 24864 Wh
Battery Nominal Voltage 336.00 v
Battery Type Lithium Ion
Depth Of Discharge 90.00 PERCENT
Max Charge Power Battery 24864 w
Max Charge Voltage 378.0 v
Maximum Discharge Power 24864 w
Recommended Discharge Power 12432 w
Warranty Years 10
Item Weight 0 Kg
