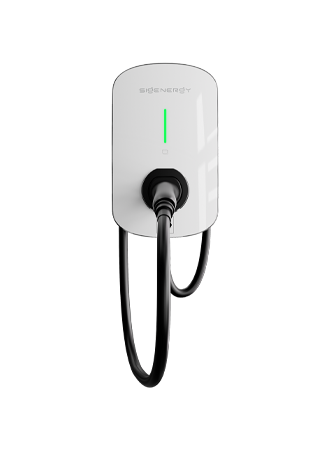

The Sigen EVAC 7 kW is a smart single-phase AC EV charger designed for residential installations, delivering reliable home charging with advanced protection, flexible connectivity, and optional integration with the Sigenergy home energy ecosystem.
Technical Summary
- Rated power: 7 kW
- Tethered with 5m cable
- Supply: Single-phase (230 V AC)
- Output current range: 6–32 A
- Protection rating: IP65
- Impact rating: IK10
- Communication: Wi-Fi / LAN / optional 4G / RS485
- Protocol support: OCPP 1.6J
- Authentication: RFID / app
- Operating temperature: –30 °C to +55 °C
- Installation: Wall mounted
- Application: Indoor / outdoor
- Built-In Protection – Including integrated residual current protection delay
- When installed with compatible Sigenergy components:
- PV Surplus Charging
- Dynamic Load Management
- Battery-Assisted Charging
