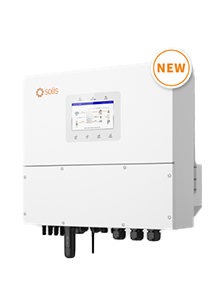

Solis S6 12 kW Three Phase Hybrid High Voltage Inverter

Solis

Solis S6 12 kW Three Phase Hybrid High Voltage Inverter

SOL-S6-EH3P12K-H

£1,465.00 exVAT (12.2p/Wp)

Wattage Rating

12000 w

Storage System Type

Full Hybrid

Phases

Three Phase

Warranty Years

5

All Technical Specifications

Documentation

General Product Documents – Solis Hybrid winter guide EN 2024

General Product Documents – Solis Datalogger Guide

General Product Documents – Solis S6 3PH 12-20kWh - EN

General Product Documents – Data Sheet S6-EH3P(12-20)K-H - NL

General Product Documents – S6-EH3P(12-20)K-H - DE

Other Features

Features:

  • Integrated 4 MPPTs for multiple array orientations
  • Up to 50A max charge/discharge current
  • String current up to 20A, perfectly match large current modules
  • 10 second 200% surge power backup overload capability
  • Supports Max 6 pcs in parallel
  • Up to 200% DC oversizing
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
  • Supports peak shaving control in both "self-use" and "generator" mode
  • 6 customisable charge/discharge time settings
  • Automatic UPS switching
  • Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Note: Including 3 current sensors for direct connection to the inverter

Technical Specifications

Segen Part No SOL-S6-EH3P12K-H
Wattage Rating 12000 w
Storage System Type Full Hybrid
Max Ac Power 11000 w
Phases Three Phase
Dc Startup Voltage 160.00 v
Has Dc Isolator Yes
Max Dc Power Total 24000 w
Max Mppt Voltage 850.00 v
Number Of Mppt 4
Manufacturer Part Number S6-EH3P12K-H (Display)
Warranty Years 5
Item Weight 31 Kg
