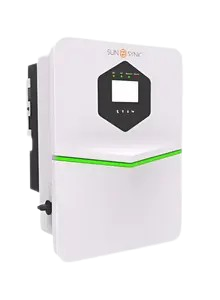

Sunsynk Acure 8kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

Sunsynk

Sunsynk Acure 8kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

SUN-ACURE-8.0

£1,485.00 Ex VAT (18.6p/Wp)

Wattage Rating

8000 w

Storage System Type

Full Hybrid

Phases

Single Phase

Warranty Years

5

All Technical Specifications

Documentation

General Product Documents – Acure EN

General Product Documents – Acure CE EN

General Product Documents – Acure EN

Grid Certificates – SUNC2__3_6_8_LV01_B_W__VoC_SS_Ltd_2025_07_02_1_

Test Certificates – SunC2__3_6_8_LV01_B_W__CoC_SS_Ltd_2025_06_06

Other Features

The Sunsynk Acure is a next-generation hybrid inverter designed for smarter, safer, and more efficient energy management across solar, battery, and grid systems.

Product Features

  • Programmable, wireless smart switch (40 Amp switch included.)
  • Max. 10 smart switches supported for Max power optimisation.
  • Wireless CT coil facility.
  • Built-in Bluetooth and Wi-Fi. (no external data logger).
  • Built in LAN connection.
  • Brand new UI enhancing accessibility for users of all levels.
  • Built in Arc fault detection.
  • Built in solar panel theft detection circuits.
  • Has multi-colour LED strip offering real-time insights of the system.
  • Up to 16 units can be connected in parallel.
  • IP65 rated.
  • Intelligent air cooling.
  • 5-year Standard warranty.

Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical Specifications

Segen Part No SUN-ACURE-8.0
Wattage Rating 8000 w
Storage System Type Full Hybrid
Max Ac Power 8000 w
Phases Single Phase
Dc Startup Voltage 150.00 v
Has Dc Isolator Yes
Max Dc Power Total 12800 w
Max Mppt Voltage 425.00 v
Number Of Mppt 2
Manufacturer Part Number SunC2-8.0LV01W
Warranty Years 5
Item Weight 27.10 Kg
