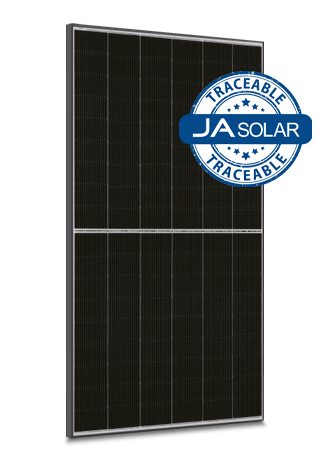

465W N-type Double Glass Bifacial LB Traceable MC4 connectors Black Fr

465W N-type Double Glass High Efficiency Mono Module - 1500V

Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.

Features:

Higher power generation, better LCOE
n-type with lower LID
Better weak illumination response
Better temperature coefficiant

Note: 1200mm landscape cable included

Product Warranty: 25 year

Linear Power Output Warranty: 30 year

JA Solar Integrated Traceable System.

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	JAM54D-40-465-LB-TS-MC4
Wattage Rating	465 w
Half Cell	No
Maximum Power Current Imp	13.63 A
Maximum Power Voltage Vmp	32.65 v
Module Cell Type	Double Glass
Number Of Cells	108
Open Circuit Voltage Voc	39.10 v
Panel Depth	30 mm
Panel Height	1762 mm
Panel Width	1134 mm
Short Circuit Current Isc	14.40 A
Temperature Coefficient Pmax	-0.300
Temperature Coefficient Voc	-0.260
Manufacturer Part Number	JAM54D-40-465-LB-TS-MC4
Panel Performance Warranty	30 Year Linear
Warranty Years	25
