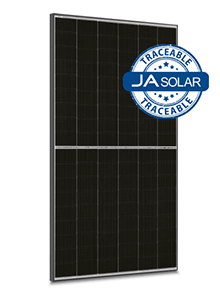

465W N-type Double Glass Bifacial LR Traceable with MC4 connectors (Black Frame)

JA SOLAR

465W N-type Double Glass Monofacial LR Traceable 54 Cell Black Frame MC4

JAM54D-40-465-LR-TS-MC4

£70.00 exVAT (15.1p/Wp)
Sign in or create an account

Wattage Rating

465 w

Panel Height

1762 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – JAM54D-40-LR EN

General Product Documents – EU_Declaration_of_Conformity_JA_Solar_Max_System_Voltage_1500_or_1000_VDC_EN

IEC Certificates – JA Solar IEC61215 and IEC61730

General Product Documents – 2_JASolarBifacialDouble_glassModuleStandardInstallationManualA16_202506

MCS Certificates – JA MCS 2025

Other Features

465W N-type Double Glass Monofacial LR Traceable 54 Cell Black Frame MC4

Technical Specifications

Segen Part No JAM54D-40-465-LR-TS-MC4
Wattage Rating 465 w
Half Cell No
Maximum Power Current Imp 13.88 A
Maximum Power Voltage Vmp 33.50 v
Module Cell Type Double Glass
Number Of Cells 108
Open Circuit Voltage Voc 40.20 v
Panel Depth 30 mm
Panel Height 1762 mm
Panel Width 1134 mm
Short Circuit Current Isc 14.65 A
Temperature Coefficient Pmax -0.290
Temperature Coefficient Voc -0.250
Manufacturer Part Number JAM54D-40-465-LR-TS-MC4\t
Panel Performance Warranty 30 Year Linear
Warranty Years 25
