470W REC Alpha Pure-RX HJT N-Type 54 All Black MC4

REC

470W REC Alpha Pure-RX HJT N-Type 54 All Black MC4

REC470AA-PURE-RX-AB

£155.00 exVAT (33.0p/Wp)
Sign in or create an account

Wattage Rating

470 w

Panel Height

1728 mm

Panel Width

1205 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – REC Alpha pure RX

General Product Documents – REC Pure Alpha RX

General Product Documents – REC Pure Alpha RX series

General Product Documents – REC Pure-RX Information Sheet

General Product Documents – WarrantyAlphaRev8

Other Features

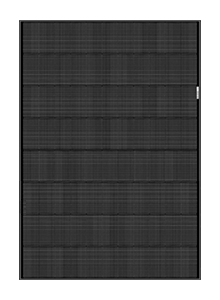

REC Alpha Pure RX Series 470W All Black Panel

The REC Alpha Pure-RX Series builds on the successes of previous REC Alpha products in uniting leading cell technology to create a revolutionary, powerful and reliable solar panel that hits the sweet spot in terms of power, weight and size:

  • Heterojunction cells
  • N-type technology
  • Advanced gapless cell connections
  • Higher efficiency at the hottest times
  • Super-strong frame

Specification

  • Dimensions 1728 x 1205 x 30mm
  • Weight: 23.4 kg
  • Power density 221 W / square meter
  • Efficiency: 22.6%
  • 88 half cut Bifacial REC heterjunction cells

Warranty

  • 20 year Product
  • 25 year Performance

 Delivery Information

  • Panels per pettet: 33
  • Panels per container: 594
  • Minimum order quantity: 1 container



Technical Specifications

Segen Part No REC470AA-PURE-RX-AB
Wattage Rating 470 w
Half Cell No
Maximum Power Current Imp 8.49 A
Maximum Power Voltage Vmp 55.40 v
Module Cell Type Monocrystaline
Number Of Cells 176
Open Circuit Voltage Voc 65.60 v
Panel Depth 30 mm
Panel Height 1728 mm
Panel Width 1205 mm
Short Circuit Current Isc 8.95 A
Temperature Coefficient Pmax -0.240
Temperature Coefficient Voc -0.240
Manufacturer Part Number REC470AA-PURE-RX-AB
Panel Performance Warranty 25 Year Linear
Warranty Years 20
