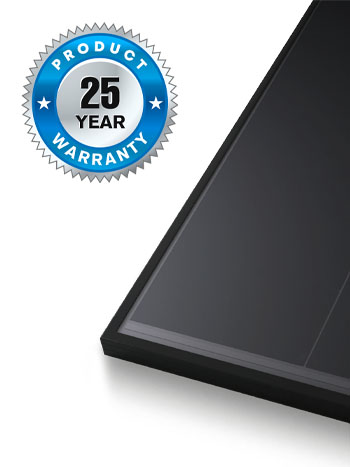

510W Neostar 2S+ N-Type Dual-Glass ABC 60 Cell All Black MC4-EVO2 Gen 2

AIKO

510W Neostar 2S+ N-Type Dual-Glass ABC 60 Cell All Black MC4-EVO2 Gen 2

AIK-A-MAH60-510-AB-DG-G2

£75.00 exVAT (14.7p/Wp)

Wattage Rating

510 w

Panel Height

1954 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – AIKO-MAH60Db (500-520W) Gen 2 AB DG EN

General Product Documents – AIKO V19 EN

General Product Documents – AIKO PV Modules

MCS Certificates – Aiko Solar Mw and Mb

TUV Certificates – AIKO Dust and Sand EN

Other Features

Aiko Monocrystaline N-type ABC - Dual-Glass, Neostar 2S+ Gen 2

AIKO-A510-MAH60Db

AIKO’s All-Black 60-cell gen 2 panels are a result of cutting-edge technology and deliver a fantastic 23.0% efficiency. These sleek panels feature a blacked-out effect and bezel-less edge to provide a stylish edge to the panel’s overall design. AIKO’s 60 cell panels are perfect for residential builds looking for the highest efficiency available.

  • Up to 23.5% Efficiency 500W-520W
  • Maximum System Voltage: DC1500V
  • Panel Rating (510W) Efficiency: 23.0%
  • Cable Length: 1.2m
  • Connector: Staubli MC4 EVO2
  • Product Warranty: 25 Years
  • Performance Warranty: 30 Years

Aiko Key Features

  • Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
  • No.1 efficiency in the market
  • Cell-level partial shade optimisation (one and only in the industry)
  • High temperature restriction for fire safety
  • Micro-crack resistance
  • Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
  • Elegant no-busbar look

Note: 1200mm landscape cable included

Videos

Technical Specifications

Segen Part No AIK-A-MAH60-510-AB-DG-G2
Wattage Rating 510 w
Half Cell No
Maximum Power Current Imp 13.39 A
Maximum Power Voltage Vmp 38.10 v
Module Cell Type ABC Monocrystalline
Number Of Cells 60
Open Circuit Voltage Voc 45.22 v
Panel Depth 30 mm
Panel Height 1954 mm
Panel Width 1134 mm
Short Circuit Current Isc 14.17 A
Isc 0.050
Temperature Coefficient Pmax -0.260
Temperature Coefficient Voc -0.220
Manufacturer Part Number AIK-A-MAH60-510-AB-DG-G2
Panel Performance Warranty 25 Year Linear
Warranty Years 25
