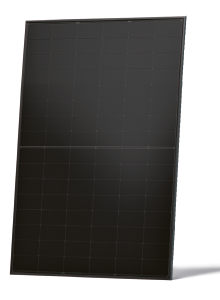

510W Tiger Neo 2.0 N-Type TOPCon 54 Cell Dual Glass Bifacial Black Frame MC4

Jinko

510W Tiger Neo 2.0 N-Type TOPCon 54 Cell Dual Glass Bifacial Black Frame MC4

JKM510N-54HL4M-BDV

£77.50 exVAT (15.2p/Wp)
Sign in or create an account

Wattage Rating

510 w

Panel Height

1961 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – JKM495M-54HL4M-BDV

General Product Documents – JINKO DG 2025

IEC Certificates – JINKO DG 2025 Ammonia

IEC Certificates – JINKO DG 2025 Salt dust

IEC Certificates – JINKO DG 2025 Sand dust

Other Features

JKM510N-54HL4M-BDV

Jinko 510W Bifacial module with dual glass

  • N-Type Topcon technology with Jinko's HOT 3.0 technology
  • 54 half cell
  • Durability Against Extreme Environmental Conditions
  • Improved SMBB technology
  • 22.52% module efficiency
  • High salt mist and ammonia resistance.
  • 15 Year Product Warranty
  • 30 Year Linear Power Warranty
Note: 1200mm landscape cable included

Technical Specifications

Segen Part No JKM510N-54HL4M-BDV
Wattage Rating 510 w
Half Cell No
Maximum Power Current Imp 14.83 A
Maximum Power Voltage Vmp 34.39 v
Module Cell Type N type Mono-crystalline
Number Of Cells 120
Open Circuit Voltage Voc 40.72 v
Panel Depth 30 mm
Panel Height 1961 mm
Panel Width 1134 mm
Short Circuit Current Isc 15.73 A
Isc 0.046
Temperature Coefficient Pmax -0.290
Temperature Coefficient Voc -0.250
Manufacturer Part Number JKM510N-54HL4M-BDV
Panel Performance Warranty 30 Year Linear
Warranty Years 15
