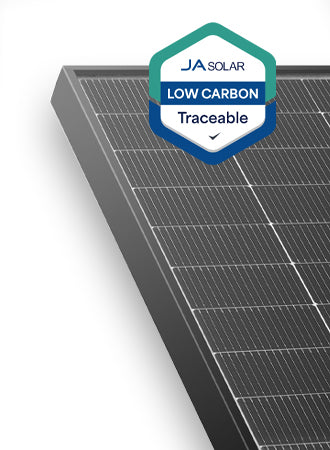

530W N-type TOPCon MBB Traceable Low Carbon Double Glass Bifacial 60 Cell Black Frame MC4

JA SOLAR

530W N-type TOPCon MBB Traceable Low Carbon Double Glass Bifacial 60 Cell Black Frame MC4

JAM60D-42-530-LB-TSLC-BF

£73.50 exVAT (13.9p/Wp)

Wattage Rating

530 w

Panel Height

2063 mm

Panel Width

1134 mm

Panel Depth

30 mm

All Technical Specifications

Documentation

General Product Documents – JAM60D42 515-540W LB ITS Low Carbon BF EN

General Product Documents – for JA Solar.

General Product Documents – JA Solar

IEC Certificates – for JA Solar.

General Product Documents – JA Solar Bifacial Double Glass

Other Features

Product Features:

  • Higher power generation - better LCOE.
  • N-type with very low LID.
  • Better weak illumination response.
  • Better temperature coefficient.
  • Comes with a 12-year product warrant and 30-year linear power output warranty.

Segen Solar is an authorized reseller for JA Solar, please refer to the letter in the document section.

Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Watch the D42 module series in this video→

Technical Specifications

Segen Part No JAM60D-42-530-LB-TSLC-BF
Wattage Rating 530 w
Half Cell No
Maximum Power Current Imp 14.40 A
Maximum Power Voltage Vmp 36.81 v
Module Cell Type Bifacial Double Glass
Number Of Cells 144
Open Circuit Voltage Voc 43.93 v
Panel Depth 30 mm
Panel Height 2063 mm
Panel Width 1134 mm
Short Circuit Current Isc 15.26 A
Isc 0.046
Temperature Coefficient Pmax -0.300
Temperature Coefficient Voc -0.260
Manufacturer Part Number JAM60D-42-530-LB-TSLC-BF
Panel Performance Warranty 30 Year Linear
Warranty Years 12
