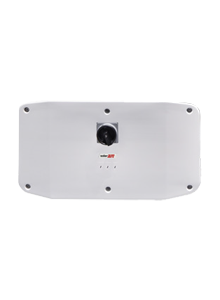

66.6kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD

SolarEdge

66.6kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD

SE-66600-MNGR-S

£1,087.00 exVAT (1.6p/Wp)
Sign in or create an account

Wattage Rating

66600 w

Phases

Three Phase

Warranty Years

12

All Technical Specifications

Extended warranty for

Documentation

General Product Documents – Solar Edge 3ph New Synergy Inverters Product Information April 2021

General Product Documents – Solar Edge Three Phase Inverter with Synergy Technology 03/2021 DS-00008-1.0-EU

General Product Documents – se-three-phase-inverter-with-synergy-50-66-90-100kW-datasheet-de

General Product Documents – se_zero_feed_in_manufacturer_self_declaration_de

General Product Documents – se-three-phase-inverter-certificate-ce-conformity-pl

Other Features

Solar Edge Synergy Manager:

  • Contains communication board, AC and DC connection: no need to open the inverter units during installation.
  • Reduced BoS with support for single DC input and cost-effective aluminium cables
  • Separation of AC and DC connections
  • Dimensions of Synergy Manager (H x W x D): 360 x 560 x 295mm
  • Weight of Synergy Manager: 18kg

Supplier Part Code

SE66.6K-RW00IBNQ4

Warning: Solar Edge Synergy Manager can not be used on its own, it always requires Synergy Units to work, 2x for 50kW and 66.6kW and 3x for 90kW and 100kW.

Technical Specifications

Segen Part No SE-66600-MNGR-S
Wattage Rating 66600 w
Max Ac Power 66600 w
Phases Three Phase
Has Dc Isolator Yes
Manufacturer Part Number SE66.6K-RW00IBNQ4
Warranty Years 12
Item Weight 18 Kg
