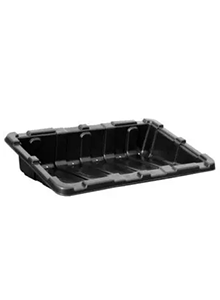

The ConSole+ provides an angle of 15 degrees.
The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+.
The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.
Module Width Approx: 1046 - 1160mm
Module min. - max. W: Not required
Module min - max X: 1016 - 1110mm
Module min - max Y: 690 - 1180mm
Module min - Max Z: 1550 - 2400mm
( Please refer to document Data Sheet Article No. R460196)
