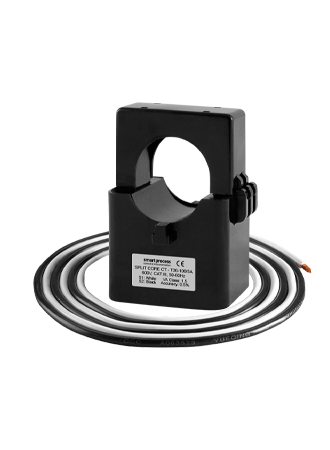

Current Transformer 100A ( incl. fly lead )

Landis

Current Transformer 100A ( incl. fly lead )

CT-100A

£25.40 exVAT
Sign in or create an account

Manufacturer Part Number

STCK35-100A

All Technical Specifications

Documentation

General Product Documents – CT 100A, 200A, 500A

General Product Documents – SCTxx-xxx CTs

General Product Documents – esct_tsplitcoreseries8

Other Features

100A Current Transformer clamp   Split Core CT Series Frequency: 50-60Hz Accuracy: ±1% between 20% - 120% Insulation voltage: 600V AC Maximum primary voltage: 5000V AC Dielectric strength: 2.5KV/1mA/1min Operating temperature: -15°C to +60°C Operating humidity: <85% Case material: PC / UL94-V0 Bobbin: PBT Core: Permalloy Internal structure: Epoxy

  • Split core Current Transformer incl fly lead

  • 100A Primary / 5 A Secondary

  • Part No as per datasheet: SCT24 100\\5

  • Keywords: Landis, Display, Current Sensor Clamp

Technical Specifications

Segen Part No CT-100A
Manufacturer Part Number STCK35-100A
Warranty Years 0
Item Weight 0.26 Kg
