DY_STACK100PRO_EXTENSION_SET

Dyness

Dyness Stack100 Pro Stack Extension set- heated

DY-STACK100-PRO-EXTENSION-SET

£303.00 exVAT

Manufacturer Part Number

stack100 Pro extension set

All Technical Specifications

Documentation

General Product Documents – Dyness C&I Loesungen - DE

General Product Documents – Dyness C&I Solutions - EN

General Product Documents – Dyness Stack100 HV - DE

General Product Documents – Dyness Stack100 HV - EN

General Product Documents – Dyness Compatible List with Inverters DE

Other Features

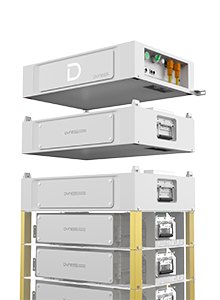

The Dyness Stack100 Pro extension set, heated.

This is an extension set that allows you to split your Stack.

Explanation on combining heated and unheated Stack100 Pro modules and BDUs:

1.    If the BDU has a heating function but the battery modules do not, or if heated and unheated battery modules are used together, the BDU reports an error. Solution: Update the BDU software remotely to disable the heating function.

2.    If the BDU does not have a heating function but the battery modules do, or if heated and unheated battery modules are mixed, the entire system operates normally without the heating function and the BDU does not report an error.

Technical Specifications

Segen Part No DY-STACK100-PRO-EXTENSION-SET
Manufacturer Part Number stack100 Pro extension set
Warranty Years 0
Item Weight 17 Kg
