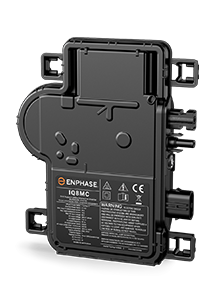

Enphase 3Phase IQ8MC 54 to 72-cell Microinverter 330VA peak power MC4

Enphase

Enphase 3Phase IQ8MC 54 to 72-cell Microinverter 330VA peak power MC4

EN-IQ8MC-72-M-INT-3PH

£89.00 exVAT (27.0p/Wp)

Wattage Rating

330 w

Phases

Three Phase

Warranty Years

25

All Technical Specifications

Documentation

General Product Documents – Instructions before Installing - DE

General Product Documents – Enphase IQ8 Range - EN

General Product Documents – Enphase IQ8 Range - NL

General Product Documents – Enphase IQ8 Range - DE

General Product Documents – Enphase IQ8 Range - FR

Other Features

Supplier Code: IQ8MC-72-M-INT Three Phase

  • Phases: 1 or 3 (depending on wiring)
  • MPP Tracker: 1
  • Inputs per Tracker: 1
  • Rated AC power: 330VA
  • MPPT Voltage Range: 25 - 45 V
  • Warranty: 25 Years
  • Technical Specification
  • Input current: 14 A
  • Short-circuit current: 25 A
  • Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled

Technical Specifications

Segen Part No EN-IQ8MC-72-M-INT-3PH
Wattage Rating 330 w
Max Ac Power 325 w
Phases Three Phase
Dc Startup Voltage 22.00 v
Has Dc Isolator No
Max Dc Power Total 480 w
Max Mppt Voltage 60.00 v
Number Of Mppt 1
Warranty Years 25
Item Weight 1.10 Kg
