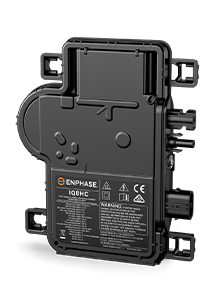

Enphase IQ8HC 54 and 72 cell Microinverter 384 VA peak power MC4

Enphase

Enphase IQ8HC 54 and 72 cell Microinverter 384 VA peak power MC4

EN-IQ8HC-72-M-INT

£108.00 exVAT (28.1p/Wp)

Wattage Rating

384 w

Phases

Single Phase

Warranty Years

25

All Technical Specifications

Documentation

General Product Documents – Instructions before Installing - NL

General Product Documents – Instructions before Installing - DE

General Product Documents – Enphase IQ8 Range - EN

General Product Documents – Enphase IQ8 Range - NL

General Product Documents – Enphase IQ8 Range - DE

Other Features

Supplier Code: IQ8HC-72-M-INT

Phases: 1 oder 3 (depending on wiring)

MPP Tracker: 1

Inputs per Tracker: 1

Rated AC power: 384 VA

MPPT Voltage Range: 29.5 - 45 V

Warranty: 25 Years

Technical Specification

Input current: 14 A

Short-circuit current: 25 A

Connectivity: With the help of the Envoy WLAN/Ethernet and app-enabled

Technical Specifications

Segen Part No EN-IQ8HC-72-M-INT
Wattage Rating 384 w
Max Ac Power 366 w
Phases Single Phase
Dc Startup Voltage 22.00 v
Has Dc Isolator No
Max Dc Power Total 560 w
Max Mppt Voltage 60.00 v
Number Of Mppt 1
Manufacturer Part Number EN-IQ8HC-72-M-INT
Warranty Years 25
Item Weight 1 Kg
