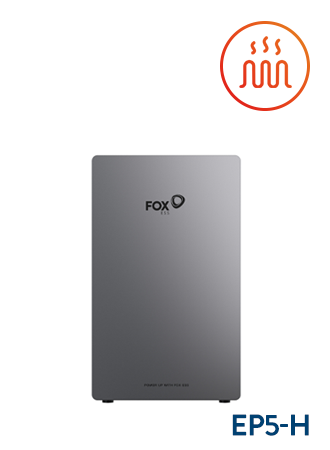

Fox ESS EP5 5.18kWh Battery with Heating Element

Fox ESS

Fox ESS EP5 5.18kWh Battery with Heating Element

FE-HV-EP5-H

£1,227.00 exVAT
Sign in or create an account

Battery Nominal Energy Wh

5184 Wh

Battery Nominal Voltage

192.00 v

Maximum Discharge Power

5184 w

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – Fox ESS EP5-H EN

General Product Documents – Fox ESS EP5 EN

General Product Documents – Fox ESS EP5 EN

General Product Documents – Fox ESS EP5 EN

General Product Documents – Fox ESS Battery V4.5

Other Features

Fox EP5-H

The EP5-H is a high-performance, scalable battery storage system, allows for maximum flexibility, making it suitable for a broad range of storage applications. With a FE-JUNBOX-HV, additional batteries can be installed in parallel allowing for a maximum storage capacity of 20.8kwh.

  • Battery heating and fire suppression
  • Scalable to 20.8 kWh
  • 90% Depth of Discharge
  • Floor or Wall Mounting
  • Compact & Easy Installation
  • IP65 Protection Level
  • High Voltage and High Efficiency
  • 10-year warranty upon registration


  Please note that the EP-5/EP-6 are compatible together for storage expansion.

Technical Specifications

Segen Part No FE-HV-EP5-H
Battery Nominal Energy Wh 5184 Wh
Battery Nominal Voltage 192.00 v
Battery Type Lithium Ion
Depth Of Discharge 90.00 PERCENT
Max Charge Power Battery 5184 w
Max Charge Voltage 219.0 v
Maximum Discharge Power 5184 w
Recommended Discharge Power 2592 w
Manufacturer Part Number FE-HV-EP5-H
Warranty Years 10
Item Weight 51 Kg
