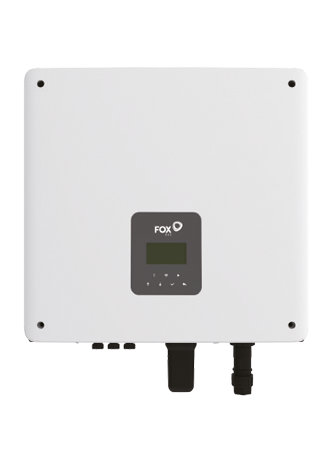

Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2

Fox ESS H1(G2): Single-Phase Hybrid (3-6kW)

Overview

The Fox ESS H1 (G2) hybrid inverters bring solar and storage together in one IP65-rated single-phase unit. They’re designed for high-voltage LFP batteries, which keeps round-trip efficiency high. They suit both new solar-plus-storage installs and battery retrofits. The H1 handles PV and battery in one box, available from 3kW to 6kW, with up to 6kW charge/discharge.

Key Features

High-voltage battery compatibility: Works with Fox ESS high-voltage LFP batteries (80-480V) for maximum round-trip efficiency.
Easy installation: Flexible configuration, plug-and-play set-up and built-in fuse protection.
IP65 rated: Suitable for outdoor installation, with natural cooling, low noise (35 dB) and an operating range of -25°C to 60°C.
Remote monitoring: FoxCloud V2.0 via smartphone app or web portal, plus an on-unit LCD.
Backup (EPS) output: Switchover in under 10ms, with a 60-second peak output of up to 120% of rated power.
Scalable: Up to 10 units in parallel.
Built-in safety: DC switch, AFCI (optional), Type II DC / Type III AC SPD, insulation and residual current monitoring, anti-islanding, and battery wake-up.

Click here to see what comes in the box.

A meter will be required for >30m distance between inverter and incoming power connection point.

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	FE-H1-5.0-G2
Wattage Rating	5000 w
Storage System Type	Full Hybrid
Max Ac Power	5000 w
Phases	Single Phase
Dc Startup Voltage	75.00 v
Has Dc Isolator	Yes
Max Dc Power Total	10000 w
Max Mppt Voltage	550.00 v
Number Of Mppt	2
Manufacturer Part Number	H1-5.0 (With EPS) WLAN
Warranty Years	5
Item Weight	22 Kg
