Grade B

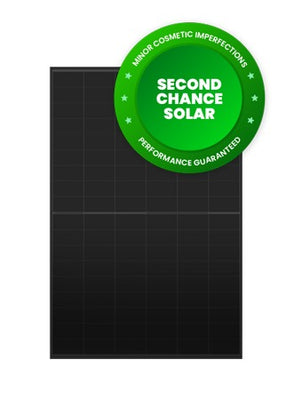

GRADE B - 550W Mono PERC Half-Cell MBB MC4
JAM72S-30-550-MR-DMG

Grade B
GRADE B - 550W Mono PERC Half-Cell MBB MC4
Wattage Rating
550 w
Panel Height
2279 mm
Panel Width
1134 mm
Panel Depth
35 mm
Documentation
Other Features
Technical Specifications
| Segen Part No | JAM72S-30-550-MR-DMG |
| Wattage Rating | 550 w |
| Half Cell | No |
| Maximum Power Current Imp | 13.11 A |
| Maximum Power Voltage Vmp | 41.96 v |
| Module Cell Type | N-Type |
| Number Of Cells | 144 |
| Open Circuit Voltage Voc | 49.90 v |
| Panel Depth | 35 mm |
| Panel Height | 2279 mm |
| Panel Width | 1134 mm |
| Short Circuit Current Isc | 14.00 A |
| Isc | 0.045 |
| Temperature Coefficient Pmax | -0.350 |
| Temperature Coefficient Voc | -0.275 |
| Manufacturer Part Number | JAM72S30-550/MR\t |
| Panel Performance Warranty | 25 Year Linear |
| Warranty Years | 12 |
