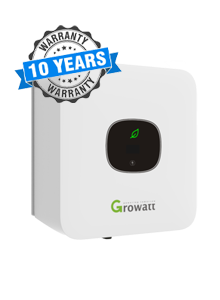

GROWATT MIC 2000TL X Single MPPT with Arc Fault Protection with DC

Growatt

GROWATT MIC 2000TL X Single MPPT with Arc Fault Protection with DC

GROWATT-MIC2000-TL-X-AFP-DC

£175.00 exVAT (8.8p/Wp)

Wattage Rating

2000 w

Phases

Single Phase

Warranty Years

10

All Technical Specifications

Documentation

General Product Documents – MIC-2500-TL-X EN

General Product Documents – MIC-2500-TL-X EN

Grid Certificates – MIC-2500-TL-X EN

Grid Certificates – MIC-2500-TL-X EN

General Product Documents – MIC-2500-TL-X EN

Other Features

Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.

The Growatt inverter range has the following leading-edge technology.

  • MPPT tracking accuracy of 99%
  • Max. Efficiency 97.6%, European Efficiency 96.5%
  • Transformerless design, offer lighter and more convenient installation
  • Power factor continuously adjustable
  • Flexible interface
  • Touch key & OLED display



UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an ‘Installer Code’ for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account.

For more information, please refer to the following document: Growatt Installer Code policy

Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.

Technical Specifications

Segen Part No GROWATT-MIC2000-TL-X-AFP-DC
Wattage Rating 2000 w
Max Ac Power 2000 w
Phases Single Phase
Dc Startup Voltage 50.00 v
Has Dc Isolator No
Max Dc Power Total 2800 w
Max Mppt Voltage 500.00 v
Number Of Mppt 1
Manufacturer Part Number MIC 2000TL-X (AF)
Warranty Years 10
Item Weight 6 Kg
