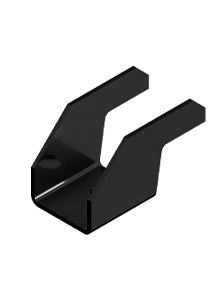

IN ROOF - SINGLE END CLAMP V2023 - H16 - STEEL - BLACK W/ EPDM FOAM ATTACHED

GSE Integration

IN ROOF - SINGLE END CLAMP V2023 - H16 - STEEL - BLACK W/ EPDM FOAM ATTACHED

GSE-CLAMP-SINGLE-H16-V2023-BLA

£1.86 exVAT

Clamp Type

End Clamp

Clamp Width

30.00 mm

Clamp Max Depth

37 mm

Clamp Min Depth

35 mm

All Technical Specifications

Documentation

General Product Documents – gse-clamp specs

General Product Documents – certification-En

General Product Documents – installation-manual-gse-in-roof-system-en-v13.1

General Product Documents – GSE Portrait 50mm Battens

General Product Documents – GSE Portrait 100mm Battens

Other Features

GSE In-Roof is a popular integrated mounting system that utilises specialised trays to create an aesthetically pleasing, durable and low-profile finish. This mounting style enables solar panels to sit flush with the roof tiles or slates and is ideal for new builds and renovations where this solution can significantly reduce the number of roof tiles required.

Key Features

  • Installation
  • Aesthetics
  • Weatherproof
  • Efficiency


Please Note you will be required to complete the relevant GSE training courses in order to attain full system warranty.

Getting Started

If you haven’t begun your training:

  1. Create a GSE CONNECTOR account here.
  2. Complete the online modules.
  3. Register for in-person training using this link here.

Becoming a GSE Certified Installer is your first step toward delivering high-quality installations and securing warranty coverage for your customers.


Technical Specifications

Segen Part No GSE-CLAMP-SINGLE-H16-V2023-BLA
Clamp Height 0 mm
Clamp Type End Clamp
Clamp Width 30.00 mm
Clamp Max Depth 37 mm
Clamp Min Depth 35 mm
Manufacturer Part Number ART105897
Warranty Years 0
Item Weight 0.02 Kg
