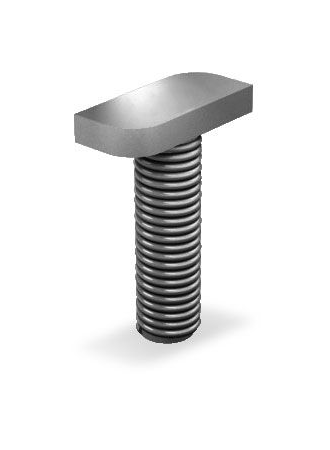

K2 Bolt 20/12 - Length- 30mm

K2 Systems

K2 Bolt 20/12 - Length- 30mm

K2-2002035

£0.35 exVAT

Documentation

General Product Documents – K2 2002035

General Product Documents – K2 Performance

General Product Documents – K2-Production control

General Product Documents – SingleRail-SpliceFoot-assembly-en

General Product Documents – SingleHook-flat-tile-assembly-en

Other Features

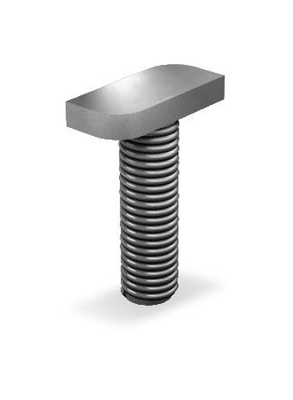

Hammerhead screw for insertion into the side chamber of the K2 SingleRail 36 & 50 rails. It can be inserted at any position and can be moved later if necessary. thread: M8x30 mm; head shape: 20/12; head dimensions: 15.5x8.5x4 mm.

Material: stainless steel A2 1.4301

Technical Specifications

Manufacturer Part Number 2002035
