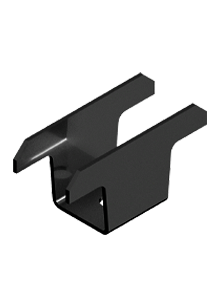

Mid Clamp Double V2023 EPDM - H16 BLACK W/ EPDM FOAM ATTACHED

GSE Integration

Mid Clamp Double V2023 EPDM - H16 BLACK W/ EPDM FOAM ATTACHED

GSE-CLAMP-DOUBLE-H16-V2023-BLA

£2.08 exVAT

Clamp Type

Mid Clamp

Clamp Width

30.00 mm

Clamp Max Depth

37 mm

Clamp Min Depth

35 mm

All Technical Specifications

Documentation

General Product Documents – GSE-IN-ROOF-SYSTEM-Correspondance-plaques-etriers-EN-V12.0

General Product Documents – GSE Integration Kit

General Product Documents – certification-En

General Product Documents – installation-manual-gse-in-roof-system-en-v13.1

General Product Documents – GSE Battening Plan

Other Features

GSE In-Roof is a popular integrated mounting system that utilises specialised trays to create an aesthetically pleasing, durable and low-profile finish. This mounting style enables solar panels to sit flush with the roof tiles or slates and is ideal for new builds and renovations where this solution can significantly reduce the number of roof tiles required.

Key Features

  • Installation
  • Aesthetics
  • Weatherproof
  • Efficiency


Please Note you will be required to complete the relevant GSE training courses in order to attain full system warranty.

Getting Started

If you haven’t begun your training:

  1. Create a GSE CONNECTOR account here.
  2. Complete the online modules.
  3. Register for in-person training using this link here.

Becoming a GSE Certified Installer is your first step toward delivering high-quality installations and securing warranty coverage for your customers.


Technical Specifications

Segen Part No GSE-CLAMP-DOUBLE-H16-V2023-BLA
Clamp Height 0 mm
Clamp Type Mid Clamp
Clamp Width 30.00 mm
Clamp Max Depth 37 mm
Clamp Min Depth 35 mm
Manufacturer Part Number ART105904
Warranty Years 0
Item Weight 0.02 Kg
