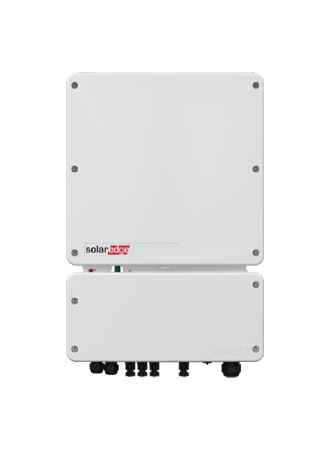

SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH

SolarEdge

SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH

SE-10000H-NET-RWB

£1,365.00 exVAT (13.7p/Wp)

Wattage Rating

10000 w

Storage System Type

Full Hybrid

Phases

Single Phase

Warranty Years

0

All Technical Specifications

Documentation

General Product Documents – SolarEdge Home

General Product Documents – SolarEdge Home Hub (RWB) 2.5-10kW EN

Grid Certificates – SolarEdge Home Hub 2200H-10000H

General Product Documents – SolarEdge Home Hub Inverter Quick Guide EU

General Product Documents – ukonlysolaredgebackupinterfacesinglephasequickinstallation_guidev4_002__solaredgeqigukonly_corrected_6

Other Features

SolarEdge Home Hub Inverter for Storage and Backup Application

SE10000H - 10kW

Requires the SolarEdge Backup Interface (SE-SBI-1PH) for the Backup funciton to work. (The inverter can work without the Backup interface)

  • The ultimate home energy manager in charge of PV production, battery storage, backup operation during a power outage (may require additional hardware), and smart energy devices
  • Record-breaking 99% weighted efficiency with up to 200% DC oversizing
  • Small, lightweight, and easy to install
  • Advanced safety features with integrated arc fault protection
  • Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
  • A scalable solution that supports future homeowner needs through easy connection to a growing ecosystem of products

12-25 Year Warranty, see 'Other Parts' section below

Only certified to be installed in UK, Spain and France

Backup Interface update for UK: With a TN-C-S supply and the SolarEdge Backup Interface, you MUST install an earth electrode to the MET. Please refer to 'SolarEdge QIG UK ONLY (Corrected)' for full details.

Technical Specifications

Segen Part No SE-10000H-NET-RWB
Wattage Rating 10000 w
Storage System Type Full Hybrid
Max Ac Power 6000 w
Phases Single Phase
Dc Startup Voltage 0.00 v
Has Dc Isolator No
Max Dc Power Total 12000 w
Max Mppt Voltage 480.00 v
Number Of Mppt 2
Manufacturer Part Number SE10000H-RWBMNBF54
Warranty Years 0
Item Weight 19.60 Kg
