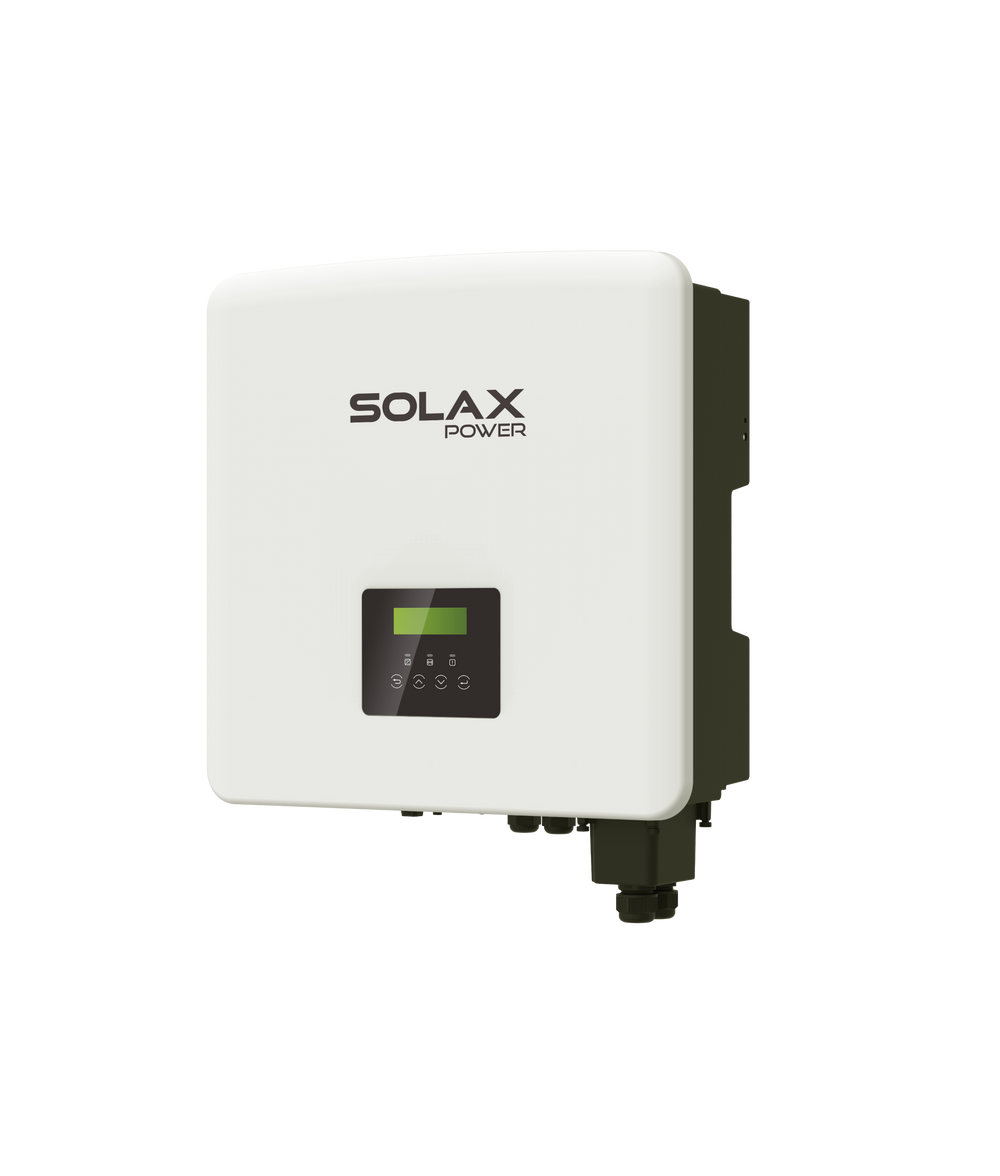

SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW

SolaX

SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW

X3-FIT-10

£847.03 exVAT (8.5p/Wp)

Wattage Rating

10000 w

Storage System Type

AC Inverter

Phases

Three Phase

Warranty Years

5

All Technical Specifications

Bundles that include this product

2 bundles

Documentation

General Product Documents – Solax X3 Fit

General Product Documents – German

General Product Documents – x3_hybrid_ce_en610002

Grid Certificates – x3_hybrid_5_0_10_0kw_uk_g98_form_c_type_test_verification_report_2019062838

Grid Certificates – x3_hybrid2_0_5_10kw_uk_g99_form_a2_3_issue_1_amd_3_2019090439

Other Features

Three Phase Retro Fit 10.0kW AC Coupled inverter

Product Features

  • Compatible with High voltage batteries
  • IP65 protection rating
  • Natural cooling and low maintenance
  • Max Efficiency up to 96%

This is the W version of the inverter with built in EPS function. It required external back up box to fully utilise the EPS function.

It can be used with between 2 and 4 Solax Triple Power Batteries (one size batteries per system only) .

This inverter can be paralleled up to 5 units per site.

Looking to expand your system capacity? See Solax EPS Parallel Box options

  • X3-PBOX-60kW-G2 – Connect up 6 AC Coupled inverters with a maximum of 60kW
  • X3-PBOX-150kW-G2 – Connect up 10 AC Coupled inverters with a maximum of 150kW
Please note: When installing in parallel all inverters should have the same Kilowatt rating

Technical Specifications

Segen Part No X3-FIT-10
Wattage Rating 10000 w
Storage System Type AC Inverter
Max Ac Power 10100 w
Phases Three Phase
Dc Startup Voltage 0.00 v
Has Dc Isolator Yes
Manufacturer Part Number X3-FIT 10.0 Charger
Warranty Years 5
Item Weight 38 Kg
