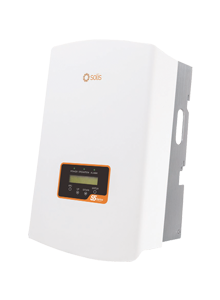

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

Max. efficiency of 98.5%
Type-II over-voltage surge protection for both DC and AC
Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
16A PV string input x 2
Maximum AC output power of 11kW
Max PV DC Power of 15kW
Integrated AFCI (DC arc-fault circuit protection)
IP66 Rated
DC reverse-polarity protection
5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

NRS-097-2-1 Certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

You can find your Account Manager's contact details in the account contacts section on the left, including their phone number and email address.

You can track your order by logging into your account and viewing your order history. You'll receive email updates with tracking information as well.

You can update your account information by going to your account settings page and editing your details.

Yes, you can return selected items from an order without returning the entire order.

When submitting your return, include a description of the issue and upload clear images of the product and packaging.

Once submitted, your return request will be reviewed by our team. You will receive an email update once it has been processed.

Yes, all returns and their statuses can be viewed from the 'Orders' page.

Refunds are processed once the returned items have been received and inspected.

Segen Part No	SOL-S5-GR3P-10K-DC
Wattage Rating	10000 w
Max Ac Power	11000 w
Phases	Three Phase
Dc Startup Voltage	110.00 v
Has Dc Isolator	Yes
Max Dc Power Total	15000 w
Max Mppt Voltage	1000.00 v
Number Of Mppt	2
Manufacturer Part Number	SOL-S5-GR3P-10K-DC
Warranty Years	5
Item Weight	17.80 Kg

Solis 10kW S5 3 Phase Dual MPPT - DC

Extended warranty for

Solis Warranty Ext. of 5 years (Total 10y) for S5 GR3P3-20K

Solis Warranty Ext. of 15 years (Total 20y) for S5 GR3P3-20K
