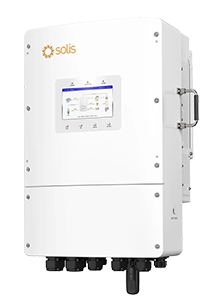

Solis 10kW Three Phase Low Voltage Hybrid Inverter

Solis

Solis 10kW Three Phase Low Voltage Hybrid Inverter

SOL-S6-EH3P10K-NV-YD-L-UK

£1,384.00 Ex VAT (13.8p/Wp)

Wattage Rating

10000 w

Storage System Type

Full Hybrid

Phases

Three Phase

Warranty Years

0

All Technical Specifications

Documentation

General Product Documents – Solis Datalogger Guide

General Product Documents – Solis 3PH LV Hybrid - EN

Grid Certificates – Solis S6-EH3P(8-15)K-NV-YD-L

General Product Documents – Solis S6-EH3P(8-15)K-NV-YD-L - EN

General Product Documents – Solis Warranty Europe 2025 UK only

Other Features

Solis Three phase LV Energy Storage Inverter

Features:

  • Generator-compatible to extend backup duration during grid power outage
  • Multiple inverters can operate together to form a microgrid
  • Supports dual backup ports for intelligent control of critical and non-critical loads
  • 10 seconds of 200% overload capability
  • Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
  • Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
  • The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port

Attention: This inverter is now certified for Belgium!!

Technical Specifications

Segen Part No SOL-S6-EH3P10K-NV-YD-L-UK
Wattage Rating 10000 w
Storage System Type Full Hybrid
Max Ac Power 10000 w
Phases Three Phase
Dc Startup Voltage 20.00 v
Has Dc Isolator Yes
Max Dc Power Total 19200 w
Max Mppt Voltage 850.00 v
Number Of Mppt 2
Manufacturer Part Number S6-EH3P10K-NV-YD-L-UK
Warranty Years 0
Item Weight 42 Kg
